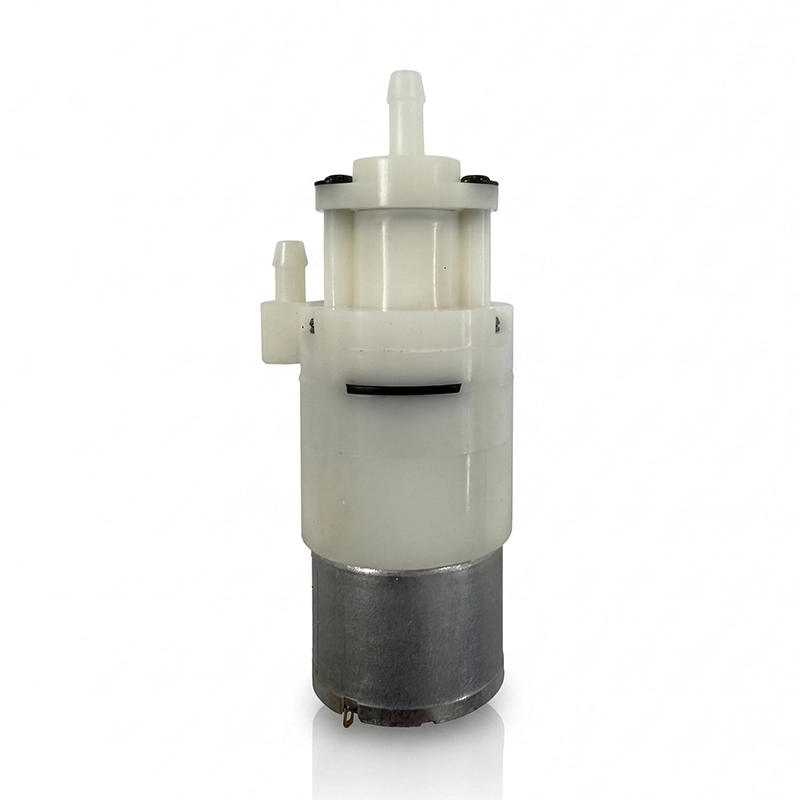

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly

This micro dispensing pump module is a core powertrain component custom-engineered specifically for smart sensor soap dispensers, categorized under our specialized sub-assembly product portfolio. Serving as the "beating heart" of automatic hand hygiene devices, the module integrates high-precision, chemical-resistant injection-molded pump casings, durable sealing diaphragms, and a high-efficiency miniature DC motor into an ultra-compact unit.

It effectively eliminates common industry drawbacks found in generic off-the-shelf pumps, such as dispensing lag, nozzle dripping, fluid clogging, and high operating noise. Engineered for outstanding fluid sealing, strong self-priming capability, and versatile fluid delivery (gel, dense foam, or fine spray), it features standardized mounting slots and quick-connect barb fittings. This plug-and-play assembly enables rapid, seamless integration into desktop, wall-mounted soap dispensers and personal care electronics, maximizing end-product reliability and service life.

Inquiry

Write a Review

Product Advantages

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 4

Proprietary Engineering & 0.25s Instant Response

Tailor-made for infrared sensor logic with optimized motor torque and eccentric gearing, delivering immediate fluid dispensing upon trigger with zero latency.

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 5

Patented Anti-Drip & Dynamic Sealing Design

Integrated high-resilience sealing valves and anti-backflow mechanisms instantly cut off fluid flow upon stopping, eliminating residual dripping and keeping countertops clean.

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 6

Micro-Precision Tooling & Chemical Resistance

Manufactured with tight tooling tolerances (within ±0.03mm) using hydrolysis-resistant engineering polymers. Compatible with harsh detergents, soaps, and sanitizers without swelling, ensuring quiet operation below 45dB.

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 7

Versatile Multi-Fluid Architecture (Liquid / Foam / Spray)

Flexible internal fluid pathway supports seamless functional conversion between dense liquid gel, rich micro-foam, and ultra-fine spray by adjusting the front nozzle/filter unit.

Plug-and-Play Sub-Assembly Integration

Pre-tested for airtightness and flow calibration prior to shipment. Standardized alignment slots and plug-in connectors dramatically reduce client-side labor costs and boost assembly-line throughput.

Technical Specifications

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 9 Category: Sub-assembly / Micro Dispensing Pump Module

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 10 Target Applications: Smart sensor soap dispensers, touchless foam washers, automated dish detergent dispensers, smart sanitary appliances

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 11 Pump Housing Material: Chemical-resistant Engineering POM / PP / Modified High-Wear Nylon (Customizable)

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 12 Diaphragm & Seal Material: High-resilience Food-Grade Silicone / EPDM

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 13 Operating Voltage: DC 3.0V – 6.0V (Optimized for AA dry battery packs or 3.7V Lithium rechargeable systems)

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 14 Dispensing Response Time: Approx. 0.25s

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 15 Operational Noise: $\le$ 45 dB(A) (Tested at 30 cm distance in an acoustic chamber)

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 16 Service Life Cycle: Over 50,000 continuous dispensing cycles

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 17

Application Scenarios

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 19 Smart Sensor Soap Dispensers (Residential & Commercial): Serves as the core powertrain module for high-end countertop contactless soap dispensers and sleek wall-mounted commercial restroom hand hygiene units.

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 20 Kitchen Automated Dish Soap Dispensers: Provides high-suction, anti-corrosion pumping for dense dish soaps, preventing oily mess and countertop contamination.

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 21 Public Health & Medical Touchless Disinfection Stations: Delivers instant high-pressure pumping and atomization for rinse-free sanitizers, chlorhexidine scrubs, and 75% alcohol sprays in high-traffic facilities.

Custom Micro Dispensing Pump Module for Smart Soap Dispensers — High-Precision, Leak-Proof & Long-Lifespan Core Sub-Assembly 22 Smart Sanitary & Personal Care Appliances: Ideal sub-assembly for automatic facial foam cleansers, scalp care misters, and antimicrobial foam shield generators in intelligent toilets.

AS-2 拷贝 (14)

3pIqEpVK7KvY6ZGkGTmYeA477635bbefaee4a109b8209049f5

Frequently Asked Questions

Q: As a sub-assembly component, how does this pump module integrate physically and electrically into our existing soap dispenser chassis and PCBA?

A: The pump housing incorporates integrated fool-proof alignment slots and standard vibration-damping mounting brackets, enabling a drop-in snap fit directly into your device's internal chassis without requiring messy adhesives or complex bracketry. On the electrical side, we provide customized wire leads with pre-crimped terminal connectors (such as PH2.0 or XH2.54). The motor winding can also be matched to your controller’s PWM signal or target operating voltage curve.

Q: Will the pump suffer from clogging, air locking, or leakage when pumping viscous liquids or fluids prone to crystallization?

A: No. The internal fluid chamber features an optimized sweeping pathway that eliminates dead zones, effectively preventing soap sediment and dried residue from clogging the check valve. Furthermore, the core dynamic sealing utilizes high-grade, fatigue-resistant silicone diaphragms. Even after prolonged periods of inactivity, the pump maintains strong self-priming dry suction and instant fluid cutoff.

Q: This "tight-fit closure" has no buckles. Will it automatically separate during bumpy transportation?

A: Yes. The modular design of the fluid path is highly adaptable. By coupling the pump outlet with our integrated air-liquid mixing chamber or micro-mesh frothing head, the system delivers rich, micro-meter foam. Removing the aeration stage enables direct, drip-free gel and liquid dispensing, allowing you to develop multiple SKU variants from a single core sub-assembly.
