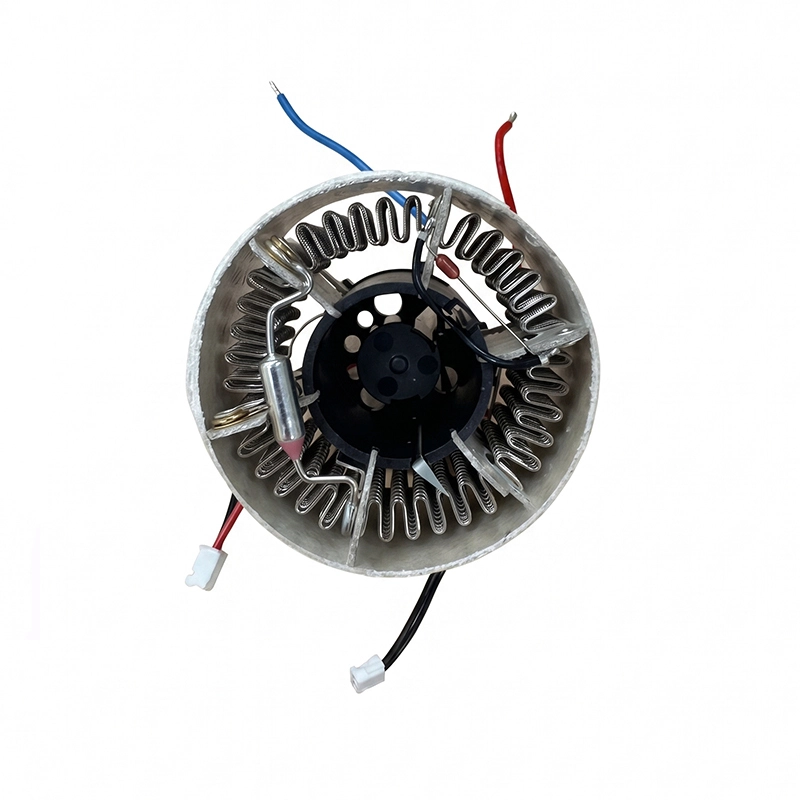

High-Speed Hair Dryer Heating Element Core Assembly 1

High-Speed Hair Dryer Heating Element Core Assembly 2

High-Speed Hair Dryer Heating Element Core Assembly 3

High-Speed Hair Dryer Heating Element Core Assembly

This is a premium, high-efficiency, and ultra-safe heating core assembly custom-engineered for next-generation 110,000 RPM high-speed hair dryers and smart hair styling appliances. As an industry-leading turnkey manufacturing partner, we provide complete production and assembly capabilities—ranging from high-temperature flame-retardant plastic injection molding and metal stamping to precision resistance wire winding, thermal fuse integration, terminal crimping, and rigid finished/semi-finished module assembly and testing.

Constructed with premium high-temperature insulating mica sheets and reinforced thermal-resistant framing, this heating element integrates high-sensitivity thermal sensors and dual-safety cutoff fuses. Featuring ultra-low airflow drag, rapid heat recovery, and uniform heat distribution, it serves as the critical thermal engine ensuring precise constant-temperature airflow and long-lasting operational reliability.

Inquiry

Write a Review

Product Advantages

High-Speed Hair Dryer Heating Element Core Assembly 4

Flexible Manufacturing: Capable of Both Sub-Assemblies & Full Turnkey Assembly

Eliminating the boundaries of traditional single-part suppliers, we provide versatile production solutions: delivering pre-tested, high-precision heating sub-assemblies ready for your final assembly line, or undertaking complete finished product assembly, dynamic burn-in testing, and packaging for hair dryer brands.

High-Speed Hair Dryer Heating Element Core Assembly 5

Superior High-Temperature Insulation & Robust Structural Integrity

The core support skeleton is precision injection-molded from specialized flame-retardant, ultra-high-temperature engineering polymers, surrounded by high-grade industrial mica sheets. It guarantees dimensional stability, zero carbonization, and long-term dielectric reliability under persistent high thermal stress.

High-Speed Hair Dryer Heating Element Core Assembly 6

Integrated Dual Thermal Protection & Precision Temperature Regulation

Pre-welded with high-precision NTC thermistors, automatic thermostats, and thermal cutoff fuses. Provides millisecond-level overheat response to avoid thermal runaway, complying with global electrical safety standards.

3D Uniform Wave-Coil Configuration & Aerodynamic Airflow Path

Scientifically spaced serrated slots ensure optimized contact area between incoming high-velocity airflow and heating coils. Enhances thermal transfer efficiency by over 30%, minimizes air resistance, and ensures quiet, laminar air passage for 110,000 RPM motors.

Product Details

High-Temperature Core Skeleton & Central Duct Bushing: Precision molded from ultra-high-temperature, flame-retardant polymers; provides exceptional thermal aging resistance and securely holds the coil leads and sensors.

Serrated Mica Insulation Spacers: High-dielectric industrial mica plates cut with exact notch spacing to prevent coil sagging or short-circuiting under continuous high-velocity vibration and air pressure.

Corrugated High-Grade Heating Coils: Premium NiCr / FeCrAl alloy resistance wire with strict resistance tolerance (±3%), offering uniform heat generation, rapid heating, anti-oxidation, and zero glowing.

Spot-Welded & Crimped Harness Assembly: Built with high-temperature silicone lead wires and silver-/brass-plated terminals. Precision spot-welding and mechanical crimping prevent loose connections and high-temperature degradation.

Thermal Cutoff Units & Quick-Connect Plug: Equipped with pre-wired fail-safe connectors and heat-shrink insulation sleeves for effortless, error-free integration into the final housing.

4 (35)

Application Scenarios

High-Speed Hair Dryer Heating Element Core Assembly 14 High-Speed Brushless Hair Dryers & Styling Dryers: Tailored for portable and professional salon hair dryers driven by 100,000–110,000 RPM high-speed BLDC brushless motors.

High-Speed Hair Dryer Heating Element Core Assembly 15 Multi-Functional Thermal Hair Tools: Ideal for negative-ion curling wands, hot air brushes, and smart air-wrap stylers requiring compact internal space and precise thermal output.

High-Speed Hair Dryer Heating Element Core Assembly 16 Appliance OEM/ODM Global Supply Chains: Supplying pre-assembled heating sub-assembly cores or complete contract manufacturing (mold design, plastic molding, electronics assembly, finished goods packaging) for international brands.

7 (13)

Frequently Asked Questions

Q: Do you only supply the bare heating core, or can you handle sub-assemblies and full finished product assembly?

A: We possess comprehensive manufacturing facilities for both semi-finished modular assemblies and full finished product turnkey assembly. Depending on your supply chain requirements, you can procure pre-tested heating core sub-assemblies directly for your production line, or entrust us with the complete product lifecycle—including mold design, injection molding (high-gloss/spray finish), motor and heating core integration, electrical testing, and finished product packaging.

Q: What is the difference between Gradient Spraying and Vacuum Plating (NCVM)? How should I choose?

A: Absolutely. We customize rated wattages (e.g., 1200W, 1400W, 1600W) and worldwide voltage variants (110V, 120V, 220V–240V) to match your specific airflow velocity, housing diameter, and targeted discharge temperature. Notch geometry, outer housing diameter, and wiring harnesses are completely adaptable.

Q: How do you prevent coil sagging or internal short-circuits under extreme 110,000 RPM airflow and impact drops?

A: We utilize high-density structural mica plates with interlocking slot geometries to mechanically trap the corrugated coils in place. The leads are secured using dual-stage crimping and high-frequency spot-welding. Every production batch undergoes strict drop testing, Hi-Pot insulation testing, and sustained airflow vibration simulation to eliminate loose wires or thermal distortion.

Q: What built-in electrical safety protections are included in this assembly?

A: The assembly integrates a triple-stage thermal control system: a high-precision NTC thermistor, an automatic thermostat, and an irreversible thermal fuse. In the event of blocked air intake or motor stalling, the thermal cutoffs trigger instantly to shut down the heating circuit, preventing housing deformation and ensuring full compliance with international safety standards such as CE, UL, CB, and RoHS.

Ready to Bring Your Product to Scale?

Whether you need a single manufacturing process or a fully integrated program, our engineering and manufacturing teams are ready to support your next project.
