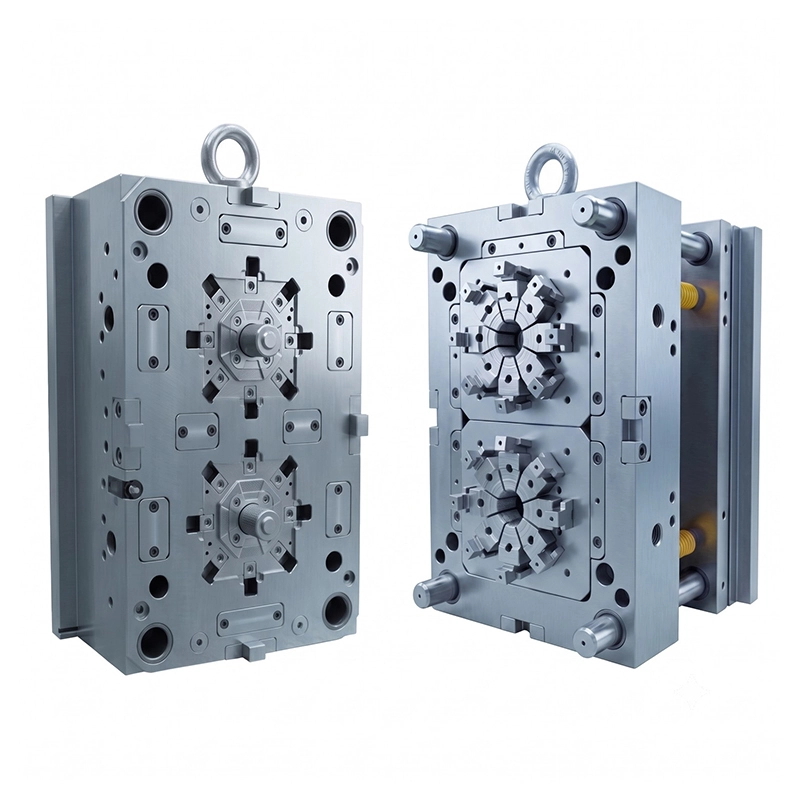

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille

This custom precision tooling solution is specifically developed for high-speed hair dryer air inlet filter grilles, handle mesh protectors, and precision cylindrical micro-aperture components

. Featuring 360-degree dense perforated mesh, thin-wall structures, internal snap-fit joints, and stringent requirements for flash-free aesthetics

, this component requires specialized tooling. Engineered with multi-directional precision synchronized slide mechanisms and radial core-pulling systems

, the mold focuses on balanced micro-hole melt filling, continuous venting, stable lateral demolding, and burr-free aperture precision, ensuring high efficiency, process stability, and superior yield rates in high-volume production

Inquiry

Write a Review

Product Advantages

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille 2

360° Precision Radial Micro-Aperture Molding & Flash Prevention:

Engineered for dense perforated patterns, the mold employs slow-wire EDM and mirror EDM processing on core pins and slide molding inserts. Ultra-tight matching tolerances (within ±0.005 mm) eliminate burrs, flash, and pinching along hole edges, ensuring unrestricted airflow and pristine aesthetics.

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille 3

Multi-Directional Synchronized Side-Action & Smooth Demolding:

To address dense hollow cutouts around the cylindrical perimeter, the mold incorporates multiple high-precision angular guide pins with synchronized radial sliders. Smooth and balanced lateral core-pulling completely avoids part scuffing, stress whitening, hole deformation, or mesh fracturing during ejection.

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille 4

Micro-Channel Filling Balance & Packing Control

Addressing the thin-wall ribs and intricate flow resistance across the mesh, runner layouts and gating points are fully optimized via Moldflow simulations. This minimizes filling shear stress and weld lines, preventing short shots, sink marks, and brittle fracture caused by internal stress.

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille 5

Modular Insert Construction & Superior Maintainability:

Perforated molding zones utilize premium wear-resistant mold steels (e.g., S136 / NAK80) configured as modular inserts and segmented sliders. In case of wear or damage, individual inserts can be quickly serviced or replaced without replacing entire mold cores, significantly reducing downtime and long-term maintenance costs.

Conformal Radial Cooling & High-Efficiency Cycle Times:

Conformal 3D cooling channels are custom-routed through both core and cavity structures to deliver uniform heat dissipation across thin grid walls. This design substantially shortens cycle times while maintaining strict roundness tolerances for seamless snap-fit assembly with dryer handles.

Product Details

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille 7 High-Rigidity Mold Base Configuration: Utilizes premium standard mold bases with enhanced guiding systems, ensuring zero shift and rigid alignment of multi-slider mechanisms under high-speed clamping pressures.

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille 8 Precision Micro-Venting: Dense micro-vents are arranged along mesh parting surfaces and slider seams to exhaust trapped air instantly, preventing burning, gas marks, and air traps during rapid filling.

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille 9 Hot Runner / Precision Pin-Point Gating: Ensures uniform filling with discreet vestige traces, eliminating the need for secondary degating or trimming.

Gemini_Generated_Image_m6juhim6juhim6ju

Gemini_Generated_Image_er5yl6er5yl6er5y

Application Scenarios

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille 12 High-Speed Hair Dryer Air Inlet Covers: Detachable magnetic or snap-on protective covers and anti-hair suction inner mesh housings at the handle base.

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille 13 Personal Care & Hair Styling Tools: Air inlet/outlet protective grills for multi-stylers, curling wands, and hot-air blowers.

High-Precision Injection Mold for High-Speed Hair Dryer Air Inlet Filter Grille 14 Turbofan & Air-Treatment Grilles: Compact intake covers for handheld turbo fans, mini desktop purifiers, and related micro-mesh structural components.

10 (5)

14 (2)

Frequently Asked Questions

Q: The air inlet grille has hundreds of micro-holes. How do you prevent flash and short shots during molding?

A: We resolve this through precision machining and flow balancing: First, slide and insert matching surfaces are machined to within ±0.005 mm to achieve tight shut-offs without pinch gaps. Second, balanced gating combined with micro-venting along slide interfaces allows complete filling at moderate injection pressure, eliminating both pressure-induced flashing and trapped-gas short shots.
