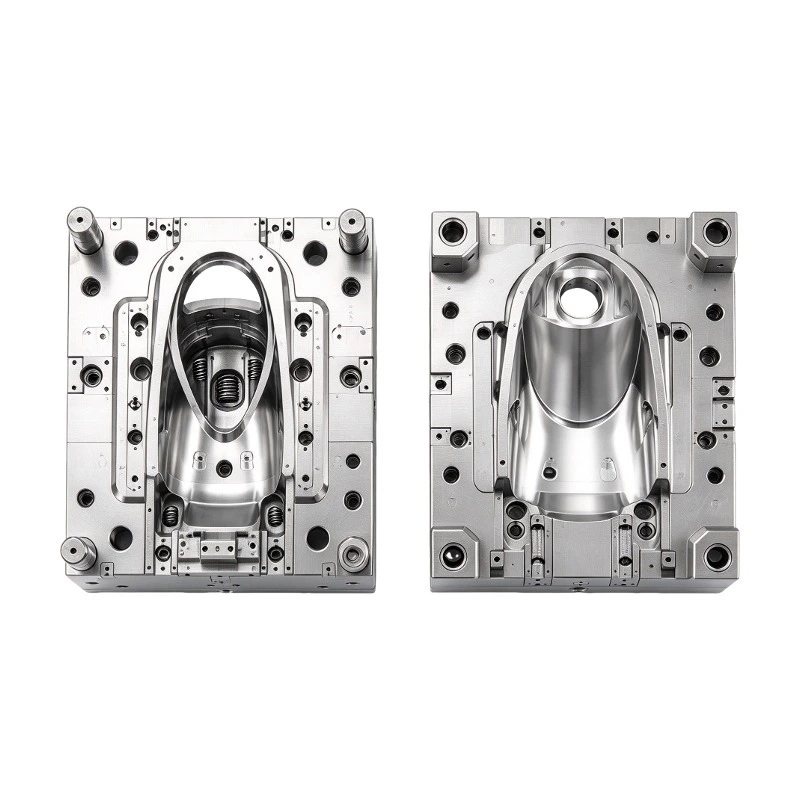

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing

This tooling project is engineered for the custom development and mass manufacturing of ergonomic shrouds, flared spray nozzles, and rotary snap-fit collars for luxury facial steamers and nano-hydration beauty devices

. Designed to handle high-temperature steam resistance, steep 3D ergonomic curvatures, and optical-grade transparency

, the mold features a high-rigidity single-cavity (1×1 Cavity) deep-draw architecture

integrated with a heavy-duty blue die spring return system, precision mechanical slides, and angled lifters

. Core and cavity inserts are machined from premium mirror-grade stainless mold steel (S136/NAK80)

, producing components with seamless parting lines, zero weld marks, and bubble-free optical clarity

. As an integrated source manufacturer, we deliver turnkey OEM/ODM solutions covering DFM optimization, Moldflow analysis, high-speed CNC/EDM tooling, T1 trial validation, high-gloss injection molding, vacuum metallization, and finished sub-assembly.

Inquiry

Write a Review

Product Advantages

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 4

Deep-Draw 3D Curvature Molding (Scratch-Free Ejection)

Engineered for flared steam shrouds with steep drafts, utilizing precision venting and high-stroke spring-assisted ejection to eliminate stress whitening, dragging marks, and structural warpage.

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 5

Steam-Resistant & Thermal Stability

Features conformal cooling channels calibrated for high-temperature engineering resins (PC, heat-resistant PP/ABS), guaranteeing zero warpage, cracking, or chemical degradation under continuous 100°C steam exposure.

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 6

Optical Mirror Finish (Ready for Metallization)

Finished to SPI A1 diamond polish standards, yielding crystal-clear transparency for tint-molded shrouds and ultra-smooth substrates for rose-gold/champagne vacuum metallization.

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 7

Hardened Guidance & Repeatable Alignment

Surface-hardened guide pillars paired with precision tapered interlocks maintain repeatable clamping alignment within ±0.01mm to ±0.015mm, reliably preventing mold misalignment and parting-line flash.

Snap-Fit Engagement & Tight Assembly Tolerances

Rotational locking slots and snap undercuts are held within ±0.02mm, ensuring smooth tactile engagement and leak-proof assembly during daily water-refill operations.

Product Details

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 9 Deep Cavity Architecture & Sub-Gating: Submerged or hot-runner gating positioned on hidden non-aesthetic mating faces, leaving visible cosmetic surfaces pristine and free of gate blemishes.

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 10 Heavy-Duty Die Spring Return Assembly: Outfitted with 4 high-load rectangular die springs to guarantee balanced ejector return, safeguarding core pins and slide faces from mechanical collision.

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 11 Side Slides & Angled Lifters: Hardened slide blocks and wear plates cleanly form internal seal ribs and retaining clips, operating smoothly without galling.

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 12 Core Conformal Water Cooling: Deep-cavity copper/stainless baffle cooling lines accelerate heat dissipation around thick-walled transition zones, cutting cycle times by over 20% while eliminating sink marks.

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 13 Secondary Processing & Custom Aesthetics: Ready for translucent tint compounding (pink, purple, blue), soft-touch matte exterior painting, and luxury rose-gold PVD vacuum metallization.

00 (6)

00 (4)

00 (5)

Application Scenarios

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 17 Nano Steam Dispensing Cone: Ergonomic flared shroud for uniform mist diffusion, resistant to heat degradation and yellowing.

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 18 Streamlined Desktop Beauty Appliance Housings: Smooth, screw-free aesthetic enclosures for modern skincare appliances and humidifiers.

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 19 Twist-Lock Reservoir Flanges & Seals: Precision retaining rings for water tanks and internal steam conduits, ensuring leak-free performance.

Precision Injection Mold for Facial Steamer Nozzle Shroud & Cosmetic Device Housing 20 Private-Label OEM for Global Beauty Brands: Custom turnkey tooling and contract injection manufacturing with strict IP defense for international retail brands.

00 (7)

00 (8)

Frequently Asked Questions

Q: With steamers exposed to 100°C steam, how do you prevent thermal warpage and steam leakage?

A: During tooling design, we incorporate high-thermal-conductivity inserts and conformal water circuits around high-stress orifices to ensure uniform shrink-rate distribution. Combined with food-grade, heat-stabilized polymers rated above 120°C, molded parts undergo autoclave steam aging and pressure-decay leak testing to verify dimensional stability.
