Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 1

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 2

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 3

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components

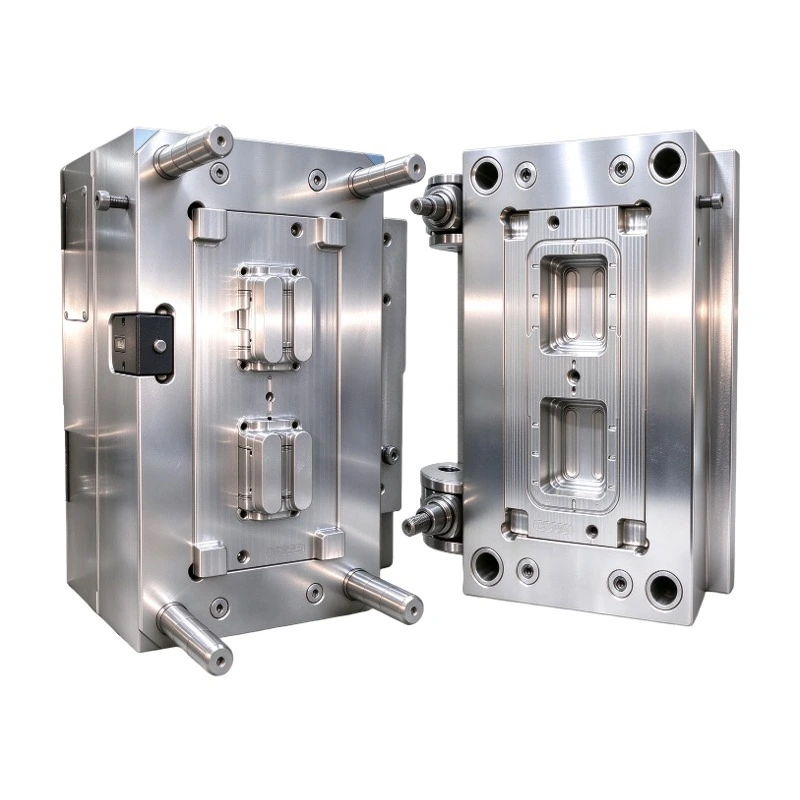

This tooling project is engineered for custom mold development and mass production of high-strength engineering plastic housings and articulating skeletal components for quadruped robotic dogs, bionic pets, and intelligent hardware

. Engineered to withstand high-frequency dynamic movement, mechanical impacts, and complex multi-joint actuation, the mold features a precision 1×2 symmetrical elongated cavity layout

, integrated heavy-duty guide pillars, multi-directional side slide mechanisms, and an electronic shot counter

. Formulated for fiber-reinforced engineering plastics (PA66+GF, PC+ABS, POM), the molded components exhibit superior flexural strength, wear resistance, and deformation-free endurance

. With micro-level tooling precision, we ensure seamless surface continuity, ultra-tight assembly clearances, and rock-solid snap-fits across chassis frames, leg linkages, and servo gearbox housings

. As an integrated manufacturing facility, we provide comprehensive one-stop services—from DFM structural analysis and Moldflow simulation to precision CNC machining, T1 sample validation, and mass injection production

Inquiry

Write a Review

Product Advantages

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 4

Comprehensive Structural Tooling (High-Strength Plastics)

Specialized in full-set chassis frameworks, head shells, torso housings, and leg linkages, designed to process fiber-reinforced and flame-retardant polymers with maximum tooling durability.

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 5

Complex Curved Surfaces & Multi-Slide Mechanisms

Precision mechanical slides and lifters cleanly form complex 3D aerodynamic curvatures and internal servo undercuts without dragging, distortion, or stress whitening.

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 6

Tight Assembly Clearances & Motion Reliability

Rigorous tolerance control guarantees vibration-proof snap-fits and frictionless pivot pin engagement, preventing joint jamming or play during high-speed gait locomotion.

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 7

Wear, Bend & Impact-Resistant Engineering

Calibrated wall-thickness transitions and precision venting eliminate internal voids, ensuring structural integrity under high-payload outdoor terrain stress.

Turnkey One-Stop Manufacturing Capability

Full-cycle execution covering DFM structural reviews, Moldflow optimization, high-speed CNC tooling, T1 prototype validation, and scalable clean-room injection mass production.

Product Details

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 9 Elongated Deep-Cavity Core/Cavity: Optimized for skeleton frames and long structural panels, featuring precision-machined flow channels that ensure uniform melt filling across deep rib walls.

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 10 Hardened Guide Pillars & Safety Screws: Surface-hardened guide pillars paired with precision tapered interlocks maintain repeatable clamping alignment within ±0.01mm to ±0.02mm, effectively eliminating parting-line flash and ensuring long-term wear-free operation under high-cycle conditions.

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 11 Integrated Production Shot Counter: External mechanical/electronic cycle counter monitors operational tool strokes, establishing predictable preventive maintenance schedules.

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 12 Metal-Insert & Bushing Overmolding: Supports automated in-mold insertion of steel bushings, brass threaded inserts, and stainless-steel pins to achieve superior structural rigidity.

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 13 SPI Polish & VDI Texturing: Cavity surfaces are finished with SPI semi-gloss polish or VDI / Mold-Tech micro-textures, delivering scratch resistance and rugged industrial grip.

1 (9) (2)

1 (8) (2)

2 (2) (2)

2 (1)

Application Scenarios

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 18 Quadruped Main Skeleton & Chassis: High-strength backbone and belly pans that securely house battery packs, PCBA controllers, and harness routing.

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 19 Multi-DOF Articulated Leg Linkages: High-torque structural links for thigh and shin mechanisms, ensuring zero backlash and minimal friction during rapid stepping.

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 20 All-Terrain Inspection & Cargo Quadrupeds: Ruggedized external shells engineered for heavy payload backpacks, LiDAR modules, and camera pods in harsh environments.

Precision Injection Mold for Intelligent Quadruped Robotic Dog Structural Housing & Chassis Components 21 STEM Educational & Competition Kits: High dimensional repeatability enables modular pin-hinge assembly with zero post-machining, ideal for robotics competitions.

5 (30)

Frequently Asked Questions

Q: Can you develop molds for robotic dog motion-component housings and complex joint structures?

A: Yes. Based on your 3D CAD files or architectural concepts, our engineering team manages complete DFM analysis, mold design, CNC machining, precision assembly, trial-mold validation, and mass injection production. We specialize in complex curved surfaces, multi-slide undercuts, and high-strength engineering plastic housings.

Q: How do you ensure wear resistance, bend resistance, and assembly accuracy for robotic dog housings?

A: We guarantee mechanical reliability through strategic resin selection, structural optimization, micron-level tooling precision, and CMM dimension verification. Using fiber-reinforced polymers (such as wear-resistant POM or PA66+GF) paired with balanced hot-runner filling eliminates internal stress voids, optimizing structural toughness and motion-joint fitting accuracy.

Ready to Bring Your Product to Scale?

Whether you need a single manufacturing process or a fully integrated program, our engineering and manufacturing teams are ready to support your next project.
