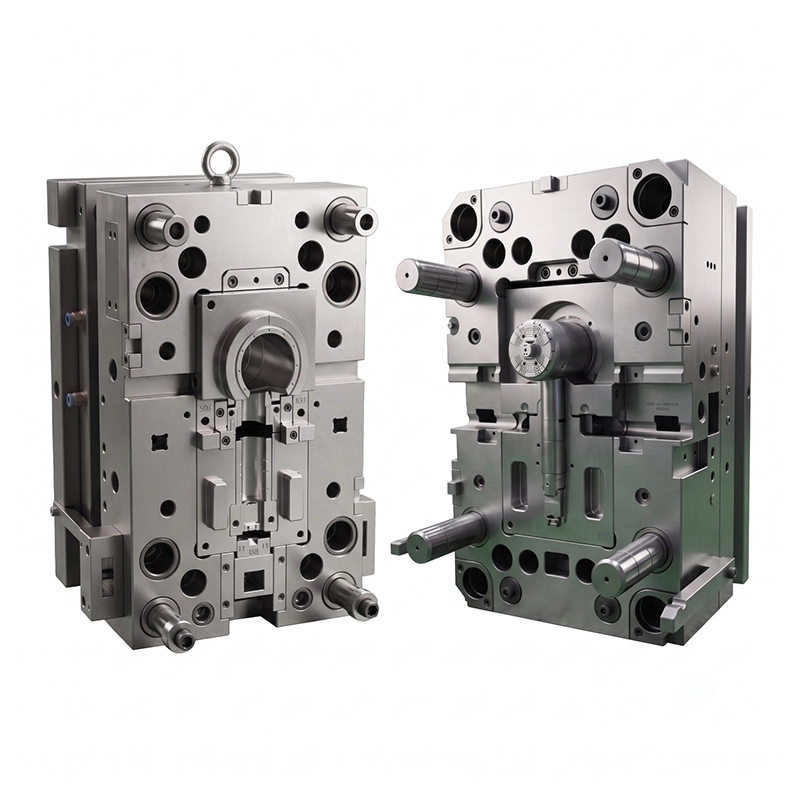

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold

This high-precision injection tooling is engineered specifically for integrated "T-shaped" high-speed hair dryer bodies—seamlessly uniting the circular hollow head barrel and the longitudinal handle frame into a unified, high-rigidity structural piece.

Featuring a robust deep-cavity cylindrical core mechanism, conical precision interlock registers, and balanced multi-channel cooling layouts, this mold solves the industry's most critical manufacturing challenges for integrated blowers: deep-cavity core eccentricity, long-handle warpage, vacuum sticking during demolding, and uneven wall shrinkage. Built to automotive and high-end consumer electronic standards, this tooling guarantees zero cosmetic witness lines across the aerodynamic airflow barrel and ensures ultra-stable snap-and-screw assembly with mating covers.

Inquiry

Write a Review

Product Advantages

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold 3

Monolithic T-Body Deep Core-Pulling & Dynamic Stability

The moving half incorporates a high-rigidity, integrated cylindrical core pin designed for hollow airflow chambers. Heavy-duty guide pillars and tapered interlocking alignment blocks eliminate core deflection under high injection pressures, ensuring inner airflow concentricity within ±0.02 mm to prevent high-speed motor vibration.

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold 4

Vacuum-Free Smooth Demolding System

Deep tubular barrels generate immense vacuum clamping force during ejection. Our core pin features precision face-venting and air-poppet assistance, introducing air instantaneously during mold opening to eliminate vacuum drag, part deformation, and internal whitening marks.

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold 5

Anti-Warpage Long-Handle Shrinkage Control

The asymmetric T-junction where the circular head meets the slender handle is naturally vulnerable to differential shrinkage. Through rigorous Moldflow thermal simulation, cooling channels are densely distributed along the handle cavity and circular head, applying micro-reverse camber compensation to achieve a straightness deviation under 0.1 mm.

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold 6

Zero-Step Clamshell Assembly & Seam Management

The continuous parting edges across the barrel rim and handle side are machined using high-speed CNC and slow-wire EDM to ±0.005 mm tolerances. The resulting molded part achieves a gap-free mating fit with the opposing shell, maintaining an assembled flush seam within ≤0.05 mm with zero tactile step-mismatch.

Optimized for High-Impact & Thermal Engineering Polymers

Tool cavity steel and venting are fully optimized for engineering resins such as PC+ABS, reinforced PA66, and flame-retardant blends. The runner system ensures balanced filling across variable wall thicknesses without flash, burn marks, or visible weld seams across external visual zones.

Product Details

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold 8 Mold Type: 1-Cavity (1+0 / 1+1 available) T-Body Integrated Housing Precision Injection Mold.

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold 9 Applicable Molded Part: Hair dryer main body frame (combined round airflow housing + ergonomic half-handle).

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold 10 Mold Base: High-rigidity standard steel base with integrated side safety locks and guide sleeves.

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold 11 Cavity & Core Steel: Premium DIN 1.2344 / ASSAB 8407 / S136 ESR (Quenched and tempered to HRC 48–52) with high wear and thermal fatigue resistance.

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold 12 Cooling System: Independent circuit layout for the deep barrel core and handle sliders, supporting fast thermal cycling.

Integrated T-Body High-Speed Hair Dryer Housing & Barrel Precision Injection Mold 13 Ejection Mechanism: Combination of cylindrical air poppet venting, sleeve ejection, and strategically positioned internal rib ejector pins (zero pins on the cosmetic outer shell).
